Tuxedo Landscape BLUE

Simple and elegant set of dashboards in high contrast black & blue, with a splash of color. Suitable for devices with a landscape orientation.

Download this dasboard

Version: 2.0.0.7File Size: 1.16 MBCreator: snylerRating: 0
Last Updated: 04-26-2022Released: 04-26-2022Downloads: 152Views: 772
Tags: Tuxedo,Landscape,Widescreen,Full Screen,Night
0 ratings

Talk about this dashboard on our forums


This set of dashbaords includes the following gauges and features:

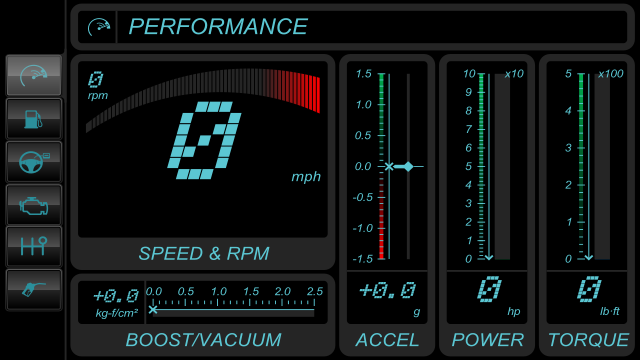

Performance dashboard:
- engine speed with sweeping bar
- corrected vehicle speed
- current fuel system in use (open or closed loop)*
- accelerator pedal position*
- throttle position*
- boost / vacuum combo gauge with maximum vacuum and maximum boost values
- acceleration (and braking)
- power at wheels with optional drag correction (air & tire)**
- torque at wheels**
- intake temperature
- coolant temperature
- instantaneous fuel economy / consumption
- average fuel economy / consumption

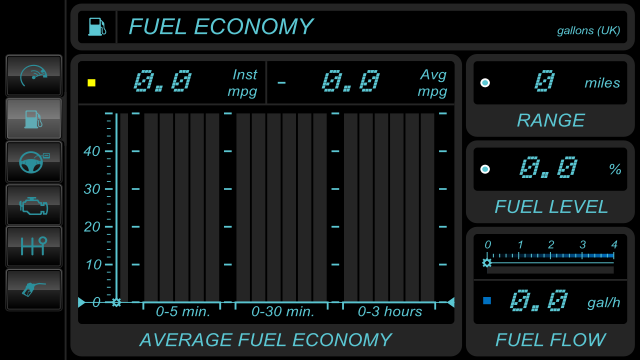

Fuel economy / consumption dashboard:
- instantaneous fuel ecomony / consumption
- average fuel economy / consumption
- average fuel economy / consumption over 3 time periods
- distance to empty *
- time to empty *
- fuel level % *
- volume of fuel remaining in tank *
- fuel flow rate gauge with current, average, minumum and maximum values

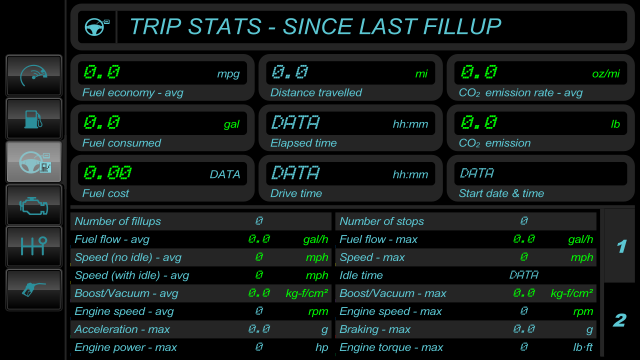

Trip computer dashboard:
- 5 monitored trips; custom A and B trips, Today, Previous Day, and Fillup
- distance travelled
- fuel consumed
- average fuel economy / consumption
- fuel cost
- elapsed time
- drive time
- average carbon dioxide emission rate
- total carbon dioxide emission
- start date & time
- number of fillups
- average fuel flow rate
- average driving speed
- average trip speed
- average boost/vacuum
- average engine speed
- maximum acceleration
- maximum engine power at wheels
- number of stops
- maximum fuel flow rate
- maximum speed
- idle time
- maximum boost/vacuum
- maximum engine speed
- maximum braking acceleration
- maximum engine torque
- percent distance travelled while not in gear
- percent distance travelled in each gear
- percent distance travelled in non-optimal gear
- percent time spent while not in gear
- percent time spent in each gear
- percent time spent while in a non-optimal gear

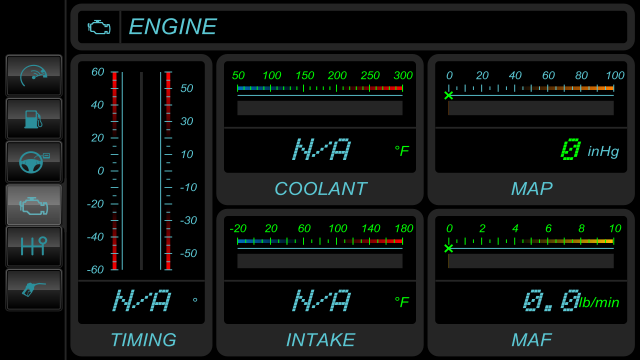

Engine metrics dashboard:
- timing (spark avdance) *
- engine coolent temperature *
- intake air temperature
- ambient air temperature *
- manifold absolute pressure
- mass air flow
- fuel trims, short and long term *
- percent engine load *
- catalyst temperature *
- fuel rail pressure wwith two scales, low and high *
- lambda gauge with commanded and actual readings *
- air / fuel ration gauge *

Shifting and gear dashboard:
- current gear
- suggested gear based on speed
- shift indicator
- shifting and gear map

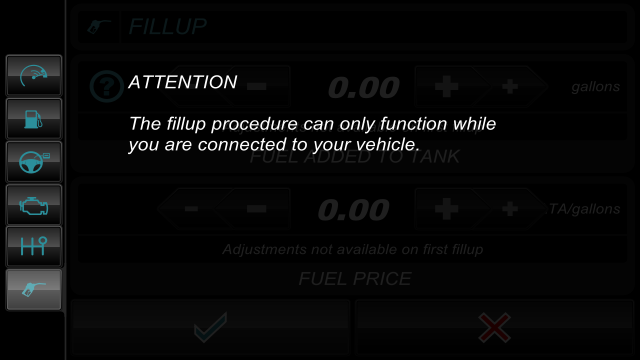

Fillup dashboard:
- record fuel tank fillup events
- calibrates the fuel economy / consumption calculations
- allows input of the fuel price

* requires that the vehicle supports the underlying parameter ID.
** curb weight must be specified in the vehicle settings

=============== CHANGE LOG ===============

v2.0.0:
- Combined Trip dashboards into a single Trip dashboard.
- Large performance optimizations.
- Added touchable gauges to the Performance and Engine dashboards.

v1.3.4:
- Fixed a bug regarding the MAF gauge.

v1.3.2:
- Fixed a typo in the fillup screen

v1.3.1:
- Fixed some more corrupt data

v1.3:
- Fixed some corrupt data

v1.2:
- Fixed some typos and alignment issues
- Made some very small performance optimizations
