BMW E46 With Graphs And Auto Color Change - English Units

A dashboard created for BMW and PLX iMFD sensors, including custom graphs

Download this dasboard

Version: 1.31File Size: 424.66 KBCreator: fizbanRating: 0
Last Updated: 04-05-2015Released: 04-05-2015Downloads: 890Views: 4627
Tags: BMW, PLX, AUX, E46, Graphs
0 ratings

Talk about this dashboard on our forums


This is a version with English unit system, since several people have requested it.


*** IMPORTANT - This skin was created with skinXL beta build which includes custom graphs. It will work on your Dashcommand app but you will not be able to edit it in skinXL yet! ***

Since BMW E46 uses slow iso 9141 with maximum of 15 PIDs per second, a fast skin is needed with several dashboards which utilize a small number of PIDs.
some design elements where taken from the very nice "BonellaBlue R18 ShiftLight 6.5K rpm", by GueroSinFe0. Kudos!

I planned the skin to be white at day time, and orange at night (between 18:00 to 06:00) to match BMW cluster colors.
=============
Change log
=============

----1.31-------
Spacing and color changes

----1.30-------

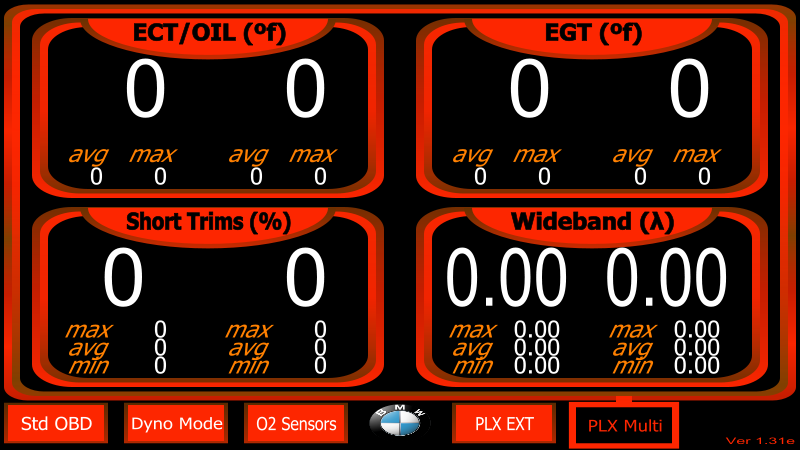

1. Removed PLX Bars and added PLX Multi - with graphs and numbers. It will be the default view

----1.23 ------
1. added graph text in graph mode
2. change graph left margins
3. pressing the BMW pic will invert graphs

----1.22 ------
1. Scaling factor corrected for graphs.

----1.21 ------
1. Oil temp warnings thresholds changed

----1.2 ------
1. Added Graphs for Dyno mode. Click on each gauge to change to graph mode.


----1.11 ------
1. Stupid logic fixes
2. Default dashboard is now PLX-EXT

----1.1 ------
1. PLX-EXT - changed warning values of EGT and ECT
2. PLX-EXT - unsupported PLX sensors will indeed be blocked by bars.
----1.0 ------

1. fixed PLX button text
2. fixed timing support condition in PLX bars

----0.9 ------
1. PLX bars now fully functional

----0.85 ------

1. Completed warning logic of PLX_EXT dashboad
2. Started working on PLX Bar dashboard, using clipping and graphs. It is not completed yet.

----0.8 ------

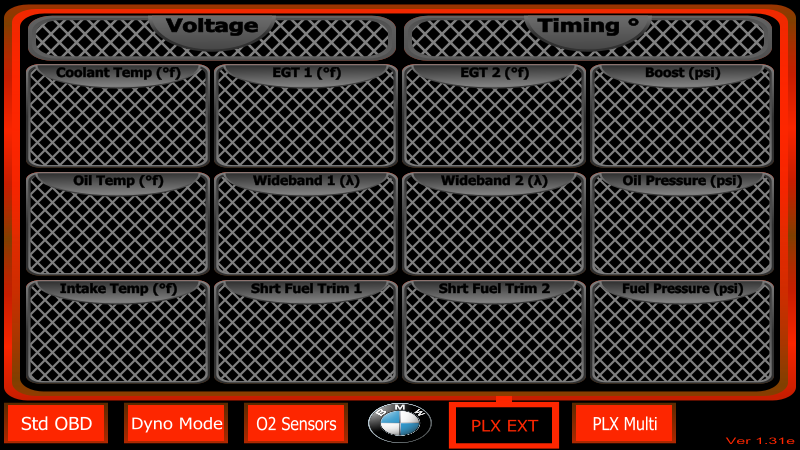

1. Added PLX Extended View - better to load on app radio enabled device. unsupported AUX PIDs will be behind bars. Warning implemetation logic is done, but still need to create the warning colors.

----0.72 ------

1. Changed color of day O2 Sensors to brighter blue

----0.71 ------
1. fixed check alternator warning bug
2. fixed voltages of o2 sensors
3. fixed bank2 PIDs

----0.7 ------
1. Warnings are noly for frames, Numbers will stay in day/night color - in order to speed things up
1. fixed double redraw of night ECT warning
2. fixed warning covers over numbers
3. O2 Sensors view should be working now

----0.65 ------
1. Change rpm check to maf check in voltmeter state
2. moved gauge background warning to a forground layer, for speed, hopefully
3. no data is displayed if disconnected
4. Started working on O2 Sensors framework

----0.6 -------
1. Changed standard OBD night max and min title colors to orange as dyno mode
2. Changed Vac/Boost gauge to MAF gauge. Faster and more interesting
3. Removed Gear display - it was slowing, needing 2 PIDs.
4. removed speed display - it was slowing things, needing 1 more PID
5. added trim1 and trim 2 yellow warning in left upper frame, if short term fuel trim were 10% or -10%
6. added engine overheating warning in middle upper frame
7. O2 sensors is not developed yet


----0.5 -------
1. Dyno Mode speed warning now glows white in 130kph and above
2. Fixed max values again (i forgot two changes in night mode)

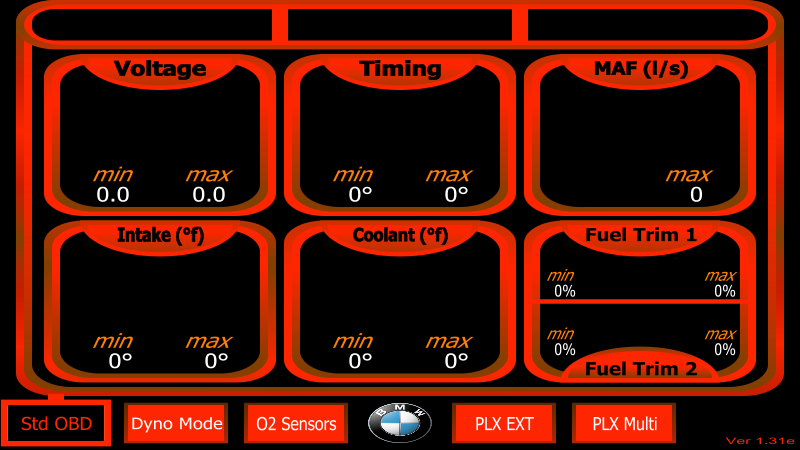

3. Added the standard OBD mode:
Shows enganged gear (N if 0)
Voltage gauge will warn if battery is low, or alternator issue, or the engine is just off
Timing gauge
Vacuum/Boost Gauge
Intake Air Temp
Coolant temp - will go blue, yellow or red (white at night) if coolant is high or low
Short term fuel trim for bank1 and bank2. Will warn by changing number colors if saw over 10% trim and titles will stay lit up red (or white).


----0.4 -------
1. Fixed the max values format.
2. Speed title illumination:
51-100 - green
101-129 - yellow
130 and above - red + high speed warning
3. Three seconds good morning/evening message one second after auto changing illumination. :)
4. Updated night illumination to better reflect BMW reddish orange.
5. Switch screen button animation improved
6. Fixed HP from Metric to English

----------------------


----0.3 -------
Current Operational Dashboards:

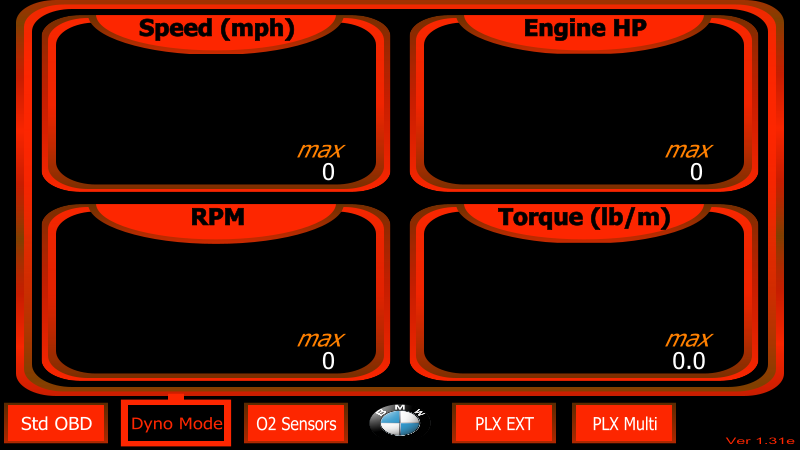

Dyno mode - with HP, Torq, Speed and RPM


Planned dashboards:
-----------------------
Standard OBD - with temperatures and fuel ST trims and timing

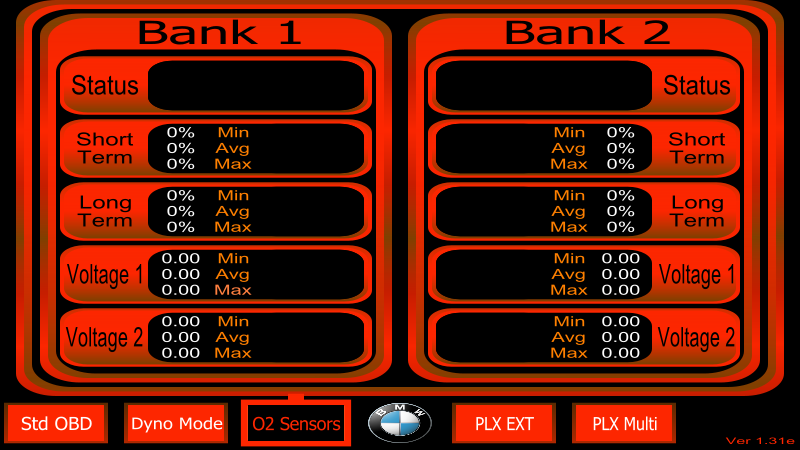

O2 sensors - reading 4 sensors, along with fuel trims and timing
Performance - PLX AUX iMFD included
